Thermally Conductive Adhesives

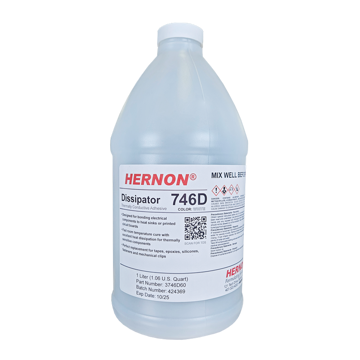

Hernon Dissipator 746D is a thermally conductive adhesive formulated for bonding electrical components to heat sinks or printed circuit boards. Fast room temperature cure combined with excellent heat dissipation for thermally sensitive components and controlled strength for service repair provide perfect replacement for tapes, epoxies, silicones, fasteners and mechanical clips. Typical Applications Typical applications include bonding transformers, transistors and other heat generating electronic components to printed circuit board assemblies or heat sinks.

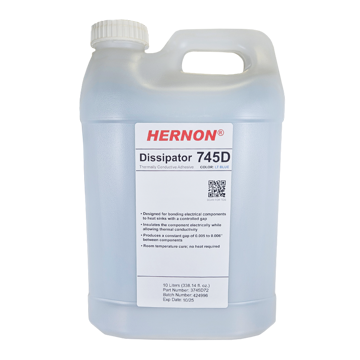

Hernon Dissipator 745D is a thermally conductive room temperature cure adhesive that is designed for bonding electrical components to heat sink with a controlled gap. Dissipator 745D, through a special shimming property, insulates the component electrically while allowing thermal conductivity. This special shimming feature produces a constant gap of 0.005 in. to 0.006 in. between components. Product Benefits • No mixing required (eliminates errors in mixing ratio) • Room temperature cure. No heat required. • Eliminates screws and rivets for assembly. • Eliminates the air space between components. • High k factor for heat conductive application
