Systems

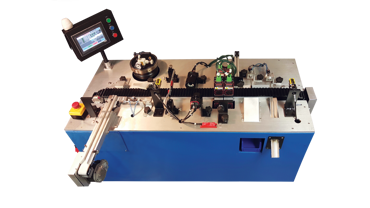

Seals Up To 120 ppm. Seals All Pistol Cartridges. Seals All Rifle Cartridges Up To & Including 338 Lapua. Seals Blank Ammunition. Operator Friendly Color Touchscreen Control/HMI. Easy Changeover From One Cartridge To Another. Collator Feeder Supports All Cartridges Up To 338 Lapua. No Part, No Dispense. Easy Load R125 Reservoir For 1 Liter Ammo Sealant Bottles. Precision Sureshot® 3510 Dispensing Valves. Efficient, No Maintenance Ultracure® 9 UV LED Curing Lamps. Easy Adjust Micro X,Y,Z Adjustment Slides For Dispense Position. Vision Inspection Sealant Verification Casemouths & Primers. Compact Inline Footprint: 24” x 84” x 68”H. Delivery: 12-16 Weeks ARO.

The Autosealer® 5220 is a compact, cost-effective ammunition waterproofing and sealing system. The Autosealer® 5220 is ideal for smaller production environments, qualifying runs (first article) or testing labs. The manually loaded 5220 dispenses Hernon® ammunition sealants on ammunition primers and casemouths via Sureshot® precision dispensing valves and then cures the sealant in seconds with powerful Ultracure® UV LED curing lamps - leaving the rounds completely waterproof and ready for immediate use or packaging.

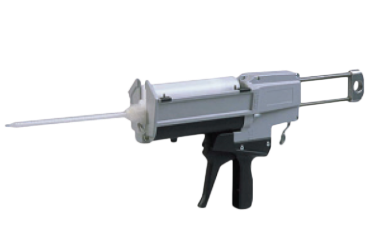

Manually operated dispensing gun for 50ml dual cartridge adhesives. Square back; MP25 10:1, 4:1, 2:1, 1:1

Accurizer Kit

The Autosealer® 5220 is a compact, cost-effective ammunition waterproofing and sealing system. The Autosealer® 5220 is ideal for smaller production environments, qualifying runs (first article) or testing labs. The manually loaded 5220 dispenses Hernon® ammunition sealants on ammunition primers and casemouths via Sureshot® precision dispensing valves and then cures the sealant in seconds with powerful Ultracure® UV LED curing lamps - leaving the rounds completely waterproof and ready for immediate use or packaging.

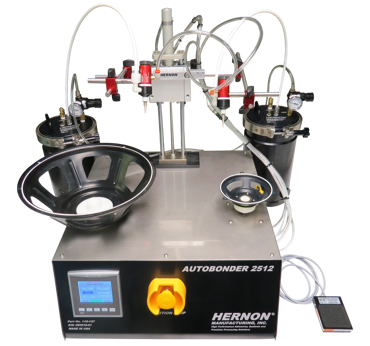

The Autobonder® 2512 is a control unit for applying a wide variety of sealants or adhesives to components along a circular path, using any number of Sureshot® valves depending on the material being dispensed. The machine allows control through an included HMI PLC and can be triggered through manual control with a footswitch and/or PLC start button. The two spindles, located in the top surface of the machine, are designed to rotate speaker components and apply a bead of adhesive along a desired edge.

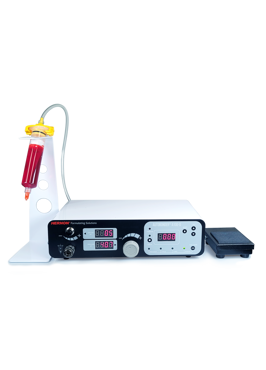

The Autobonder® A Series Digital is a high precision controller capable of handling a wide range of fluids, adhesives and sealants. The Autobonder® A100-D and A030-D are included in the A Series Digital. The AB 100-D features a (0-100psi) pressure regulator and the AB A030-D features a (0-30psi) pressure regulator. This controller has easy teach and learn functions and can deliver controlled beads, accurate dots to large volume fillings at a touch of a button. This dispensing controller ensures accurate dispense cycles and supports both syringe dispensing and valve dispensing with a reservoir.

The Autosealer® 2600 thread paste dispensing system is a touch-activated, pneumatic applicator for dispensing high-viscosity Hernon® products onto threaded pipe fittings and nipples. A quick-turn turret offers cavities for 1/16”, 1/8”, 1/4”, 3/8”, 1/2”, 3/4” and 1” male pipe threads. Once manually actuated, the piston pump expresses a metered amount of material. When the fitting is removed, the pump resets, ready for another cycle. The Autosealer® 2600 can be fed directly from a 50 ml tube, a 250 ml tube or an 850 ml cartridge.

The Autosealer® 2650 is a control unit for applying sealant to pipe thread nipples, using either the Sureshot® 2200 or 4000 dispensing valves. The Autosealer® 2650 can be triggered manually with a footswitch and/or PLC/HMI color touchscreen button.

Autosealer 4021 Machine for UV FOG Application

Hybrid 1000 Feeder Bowl

Designed to apply materials to recessed openings, the RotoCoater® evenly coats the inner surface of bores and other interior spaces. The unit can apply a controlled bead as well. The RotoCoater® 750 uses a bigger and more powerful air motor than the 500 to spin a larger dispersion cup which is inserted into a recessed area. The attached Sureshot® valve then delivers a metered amount of material to the cup that evenly coats the inner surface of the bore. The dispersion cup prevents overspray and applies a uniform layer of material. The RotoCoater® can be used with a wide-range of adhesives, sealants, oil or just about any liquid material. Each RotoCoater® 750 is customized for each application. Complete systems can be designed that apply materials to multiple bores in one cycle simultaneously.

This pneumatic attachment is designed to support the dispensing of 1:1 and 2:1 50 ml syringes. With a robust aluminum frame the cartridge dispenser stands up to industrial environments and operates in a simple intuitive manner. Ince the cardridge is in place you simply attach the air supply from your meter via the quick connect fitting and you are immediately ready to start dispensing.

The Sureshot® 3000 dispensing valve accurately controls the application of low and high viscosity fluids. With multiple models to choose from, the ceramic polymer wetted piston/ liner is used for dispensing solvents, cyanoacrylates, anaerobics and fluxes under 100 PSI. With positive shutoff and no seals, valve can be relied on to support extended manufacturing runs without leaking or breaking down. Tip selection is critical to achieve optimum valve performance. Sureshot® 3000 valve offers the option of a Luer-lock adapter and one dispensing tip kit for the fluid control.

The Sureshot® 3510 precision dispensing valve accurately controls the application of low viscosity fluids. The 3510 valve provides repeatable precision micro-dispensing with a cycle rate of over 500/min. Users can adjust the fluid flow by changing pressure control. Two needles are available for use with the 3510 valves with orifice dimensions of 0.01? and 0.007?. Easily fix a bent or cured tip by replacing the stainless steel dispensing needles. Simply unscrew the damaged or clogged needle and screw in the replacement. With a small size and low weight, the valve can be placed into narrow fittings and is a match for retrofitting. The 3510 replaces the 3500 valve previously offered.
